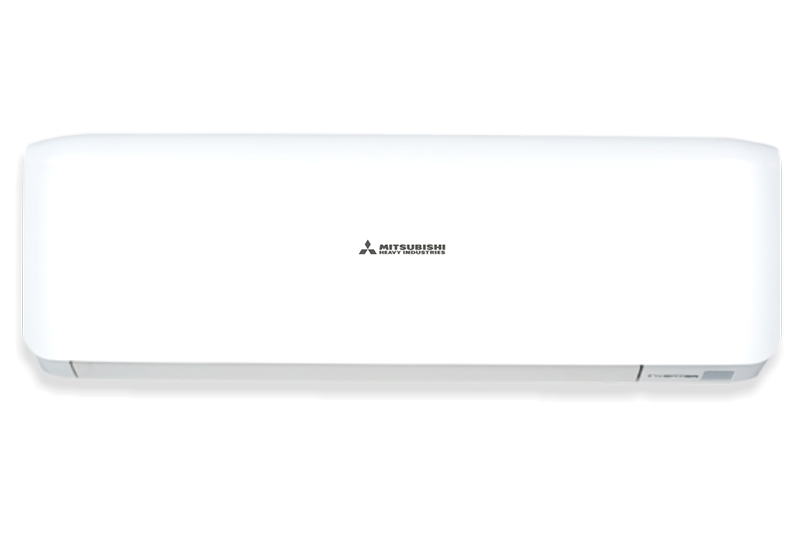

MODEL: SRK35ZS-S6 TON: 1.1 / 1.35

  • HI- WALL MOUNTED, HYPER INVERTER
  • ECO SMART HYPER INVERTER
  • REFRIGERANT: R410A
  • COOLING + HEATING
  • MODEL: SRK35ZS-S6
  • TON : 1.1 / 1.35

MODEL: SRK50ZS-S6 TON: 1.6 /1.90

  • HI- WALL MOUNTED, HYPER INVERTER
  • ECO SMART HYPER INVERTER
  • REFRIGERANT: R410A
  • COOLING + HEATING
  • MODEL: SRK50ZS-S6 – S
  • TON: 1.6 /1.90

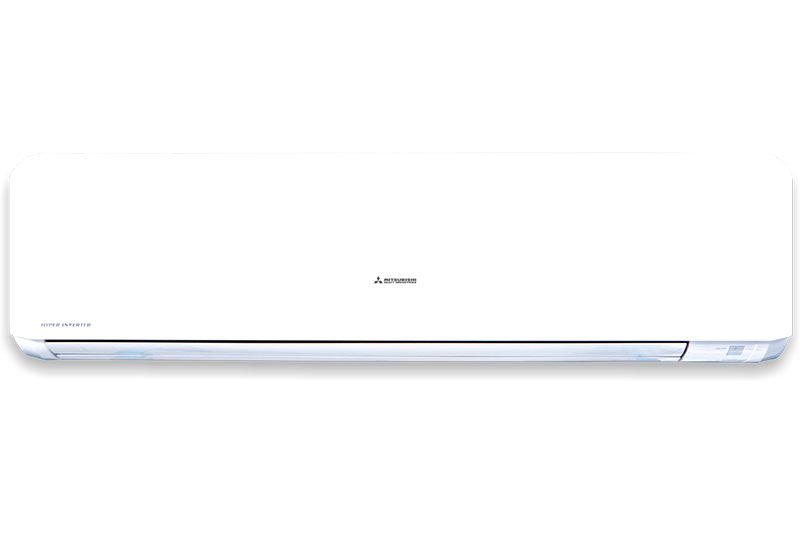

MODEL: SRK71ZR-S6 TON: 2.3 / 2.85

  • HI- WALL MOUNTED, HYPER INVERTER
  • ECO SMART HYPER INVERTER
  • REFRIGERANT: R410A
  • COOLING + HEATING
  • MODEL: SRK71ZR-S6
  • TON : 2.3 / 2.85

MODEL: SRK100ZR-S6 TON: 3.1 / 3.3

  • HI- WALL MOUNTED, HYPER INVERTER
  • ECO SMART HYPER INVERTER
  • REFRIGERANT: R410A
  • COOLING + HEATING
  • MODEL: SRK100ZR-S6
  • TON: 3.1 / 3.3

MODEL: SRK35ZSA TON: 1.1 / 1.37

  • HI- WALL MOUNTED, HYPER INVERTER
  • ECO SMART HYPER INVERTER
  • REFRIGERANT: R32
  • COOLING + HEATING
  • MODEL: SRK35ZSA
  • TON: 1.1 / 1.37

MODEL: SRK50ZSA TON: 1.6 /1.90

  • HI- WALL MOUNTED, HYPER INVERTER
  • ECO SMART HYPER INVERTER
  • REFRIGERANT: R32
  • COOLING + HEATING
  • MODEL: SRK50ZSA
  • TON: 1.6 /1.90

ECO SMART HYBRID + GIVES 1.5 TIMES BIGGER AREA COVERAGE COMPARED TO CONVENTIONAL AC & STILL GIVES ELECTRICITY SAVING UP TO 47%*

FEATURES

Description

ECO SMART HEAVY DUTY AIRCONDITIONER Presenting India’s Highest Energy Saving 1.0 Ton Eco Smart Duty AC With R 410 A Refrigerant & Maximum 3.41* EER.
DOWNLOAD CATALOG

Specifications (R410A)

SPECIFICATIONS
ECO SMART – HYPER INVERTER (R41OA ) – COOLING + HEATING
Unit
SRK35ZS-S6
SRK50ZS-S6
SRK71ZR-S6
SRK100ZR-S6
MODEL
Indoor Unit
SRK35ZS-S6
SRK50ZS-S6
SRK71ZR-S6
SRK100ZR-S6
Outdoor Unit
SRK35ZS-S6
SRK50ZS-S6
SRK71ZR-S6
FDC100VNP
Maximum Tonnage*
(Cooling/Heating)
1.1 / 1.35
1.6 /1.90
2.3 / 2.85
3.1 / 3.3
BEE STAR RATING -2018
5 STAR
5 STAR
5 STAR
NOT APPLICABLE *
Compressor Type
Super Tropical – DC PAM Inverter – Return Cooled – Rotary
Super Tropical – DC PAM Inverter – Return Cooled – Twin Rotary
VFD – Variable frequency Drive
Inverter Vector Control Technology for Higher Efficiency
Minimum Compressor RPM
7~15 RPM – Using Vector Control Technology
Refrigerant Volume Control Using
Motorized Electronic Expansion Valve for Variable Refrigerant Flow
LCD Remote Control (iPM Control)
iPM (Intelligent Power Module)
Power Source
1 Phase, 220 / 230 V, 50Hz
Maximum Cooling Capacity at

 120% Load
BTU/hr
12966
8766
27272
39579
Rated Cooling Capacity at

 100% Load
12000
17231
25436
37208
Rated Cooling Capacity at

 50% Load
5920
8615
12966
18664
Maximum Cooling Capacity at

 120% Load
Watts
3800
5500
7933
11600
Rated Cooling Capacity at

 100% Load
3517
5050
7455
10905
Rated Cooling Capacity at

 50% Load
1735
2525
3800
5470
Rated Power Consumption at

 100% Load
Watts
980
1375
2000
3090
Rated Power Consumption at
50% Load
327
485
725
1500
Rated EER/ COP at

 100% Load
W/W
3.6
3.7
3.7
3.5
Rated EER/ COP at
50% Load
5.3
5.2
5.2
3.6
Rated Indian Seasonal Energy Efficiency
ISEER
4.75
4.75
4.85
3.83
Current ( Minimum ~ Maximum )**
A
0.70 ~ 4.5
1.30 ~ 6.5
1.40 ~ 9.0
3.0 ~ 14.0
Maximum Heating Capacity**
BTU/hr
16378
22519
34200
39238
Minimum Heating Capacity
3071
5459
6825
10918
Rated Heating Capacity
13648
19790
27300
38214
Maximum Heating Capacity**
Watts
4800
6600
10023
11500
Minimum Heating Capacity
900
1600
2000
3200
Rated Heating Capacity
4000
5800
8000
11200
Maximum Power Consumption
Watts
1100
1550
2060
3280
Minimum Heating Capacity
200
250
375
650
Rated Heating Capacity
900
1300
1950
3000
EER at Maximum HeatingCapacity
W/w
4.36
4.26
4.87
3.51
Minimum Heating Capacity
4.50
6.40
5.33
4.92
Rated Heating Capacity
4.44
4.46
4.10
3.73
Current ( Minimum ~ Maximum )**
A
1.0 ~ 4.0
1.0 ~ 6.0
1.5 ~ 8.5
2.5 ~ 13.7
Dimension (H x W x D)
Indoor Unit
mm
290 x 870 x 230
339 x 1197 x 262
Outdoor Unit
mm
540 x 780(+62) x 290
595 x 780(+62) x 290
750 x 880(+88) x 340
845 x 970 x 370
Weight
Indoor Unit
Kgs
11.0
12.5
18.5
18.5
Outdoor Unit
Kgs
36
38
60
72
Cooling Coil Row
Indoor Unit
No.s
2
3
3
3
Air Flow
Indoor Unit
CMH
810
1000
1450
1900
Long Reach Airflow Upto
Indoor Unit
Meter
5.18
6.09
18.28
19.81
Self Diagnosis Function
Indoor Unit
Yes
Yes
Yes
Yes
Sound Level (H/M/L/ULo)
Indoor Unit
dB
40 / 30 / 26 / 19(U-low)
45 / 36 / 28 / 22 (U-low)
44 / 41 / 37 / 25 (U-Low)
48 / 45 / 40/ 27(U-Low)
Louver Swing
Indoor Unit
3D + 3D AUTO
3D + 3D AUTO
3D + 3D AUTO
3D + 3D AUTO
Special Filter
Indoor Unit
Allergen + Solar + Anti Bacterial – Filters
Blower Fan
Indoor Unit
Anti – Micro Biol Fan
DC Fan Motor Speed
Indoor Unit
Auto / Powerful / High / Medium / Low / ULo (Silent Mode) / Dry
Refrigerant Piping
Thickness: 18 Gauge (1mm)
Liquid Line
mm
6.35 (1/4”)
6.35 (1/4”)
6.35 (1/4”)
9.52 (3/8”)
Outdoor Unit
mm
9.52 (3/8”)
12.7 (1/2”)
15.88 (5/8”)
15.88 (5/8”)
Main Power Supply to
Outdoor Unit
2.5 mm2 x 3 cores (with Earthing Cable) / Dry
4 mm2 x 3 cores (with Earthing) / Dry
Connecting wiring to
B/w IOU & ODU
2.5 mm2 x 4 cores (with Earthing Cable)
2.5 mm2 x 4 cores (with Earthing / Dry
Operating Temperature Range
Heating
°C
-15°C ~ 24°C / Dry
Area Coverage***
Sq.Meter
12.07 ~ 15.79
15.32 ~ 18.58
27.87 ~ 41.80
41.80 ~ 55.74

Specifications (R32)

SPECIFICATIONS
ECO SMART – HYPER INVERTER ( R32 )- COOLING + HEATING
MODEL
Unit
SRK35ZSA-W
SRK50ZSA-W
Indoor Unit
SRK35ZSA-W
SRK50ZSA-W
Outdoor Unit
SRK35ZSA-W
SRK50ZSA-W
Maximum Tonnage*
(Cooling/Heating)
1.1 / 1.35
1.6 /1.90
BEE STAR RATING -2018
5 STAR
5 STAR
Compressor Type
Super Tropical – DC PAM Inverter – Return Cooled – Rotary
VFD – Variable frequency Drive
Inverter Vector Control Technology for Higher Efficiency
Minimum Compressor RPM
7 ~ 15 RPM – Using Vector Control Technology
Refrigerant Volume Control Using
Motorized Electronic Expansion Valve for Variable Refrigerant Flow
LCD Remote Control (iPM Control)
iPM (Intelligent Power Module
Power Source
1 Phase, 220 / 230 V, 50 Hz
Maximum Cooling Capacity at

 120% Load
BTU/hr
13252
18937
Rated Cooling Capacity at

 100% Load
12454
17435
Rated Cooling Capacity at

 50% Load
6312
8769
Maximum Cooling Capacity at

 120% Load
Watts
3884
5550
Rated Cooling Capacity at

 100% Load
3650
5110
Rated Cooling Capacity at

 50% Load
1850
2570
Rated Power Consumption at

 100% Load
Watts
782
1340
Rated Power Consumption at
50% Load
310
474
Rated EER/ COP at

 100% Load
W/W
4.7
3.8
Rated EER/ COP at
50% Load
6.0
5.4
Rated Indian Seasonal Energy Efficiency
ISEER
5.75
4.94
Current ( Minimum ~ Maximum )**
A
0.70 ~ 3.6
0.70 ~ 3.6
Maximum Heating Capacity**
BTU/hr
16463
22690
Minimum Heating Capacity
3071
5459
Rated Heating Capacity
13989
20131
Maximum Heating Capacity**
Watts
4825
6650
Minimum Heating Capacity
900
1600
Rated Heating Capacity
4100
5900
Maximum Power Consumption
Watts
950
1450
Minimum Heating Capacity
200
250
Rated Heating Capacity
900
1300
EER at Maximum HeatingCapacity
W/w
5.08
4.59
Minimum Heating Capacity
4.50
6.40
Rated Heating Capacity
4.56
4.54
Current ( Heating mode )
A
1.0 ~ 4.0
1.0 ~ 6.0
Dimension (H x W x D)
Indoor Unit
mm
290 x 870 x 230
290 x 870 x 230
Outdoor Unit
mm
540 x 780(+62) x 290
595 x 780(+62) x 290
Weight
Indoor Unit
Kgs
11.0
12.5
Outdoor Unit
Kgs
36
38
Cooling Coil Row
Indoor Unit
No.s
2
3
Air Flow
Indoor Unit
CMH
850
1050
Long Reach Airflow Upto
Indoor Unit
Meter
5.18
6.09
Self Diagnosis Function
Indoor Unit
Yes
Yes
Sound Level (H/M/L/ULo)
Indoor Unit
dB
40 / 30 / 26 / 19(U-low)
45 / 36 / 28 / 22 (U – low)
Louver Swing
Indoor Unit
3D + 3D AUTO
3D + 3D AUTO
Special Filter
Indoor Unit
Allergen + Solar + Anti Bacterial – Filters
Blower Fan
Indoor Unit
Anti – Micro Biol Fan
DC Fan Motor Speed
Indoor Unit
Auto / Powerful / High / Medium / Low / ULo (Silent Mode) / Dry
Refrigerant Piping
Thickness: 18 Gauge (1mm)
Liquid Line
mm
6.35 (1/4”)
Gas Line
mm
9.52 (3/8”)
12.7 (1/2”)
Main Power Supply to
Outdoor Unit
2.5 mm2 x 3 cores (with Earthing Cable)/ Dry
Connecting wiring to
B/w IOU & ODU
2.5 mm2 x 4 cores (with Earthing Cable)
Operating Temperature Range
Heating
°C
-15°C ~ 24°C / Dry
Area Coverage***
Sq.Meter
13.07 ~ 15.79
15.32 ~ 18.58
